Integral LED

UNDER CABINET BATTEN 3 CCT 1080LM 9W 3000/4000/6500K 135 BEAM 120LM/W 550MM 2FT LINKABLE NON-DIMM INTEGRAL - ILCLB022

UNDER CABINET BATTEN 3 CCT 1080LM 9W 3000/4000/6500K 135 BEAM 120LM/W 550MM 2FT LINKABLE NON-DIMM INTEGRAL - ILCLB022

£10.17 exc. VAT
exc. VAT
exc. VAT
 £10.17

£12.20 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Slim and discreet, the Integral LED Under Cabinet Batten is ideal for adding light under units and cabinets, and above vanities without spoiling the look and feel of the room.With an impressive efficacy of 120lm/W, these battens offer 3 colour temperature options selectable via the on-board switch (3000K, 4000K and 6500K), allowing CCT to be adjusted both during and after installation helping create the right ambiance whatever the space.Available in sizes 1ft to 5ft, the Under Cabinet Batten can be quickly and easily linked to create longer runs of luminaires without the need for more wiring. Made from durable polycarbonate, the batten is lightweight and easy to install whilst being able to withstand the rigours of daily life in a residential setting.

Product Feature 1:

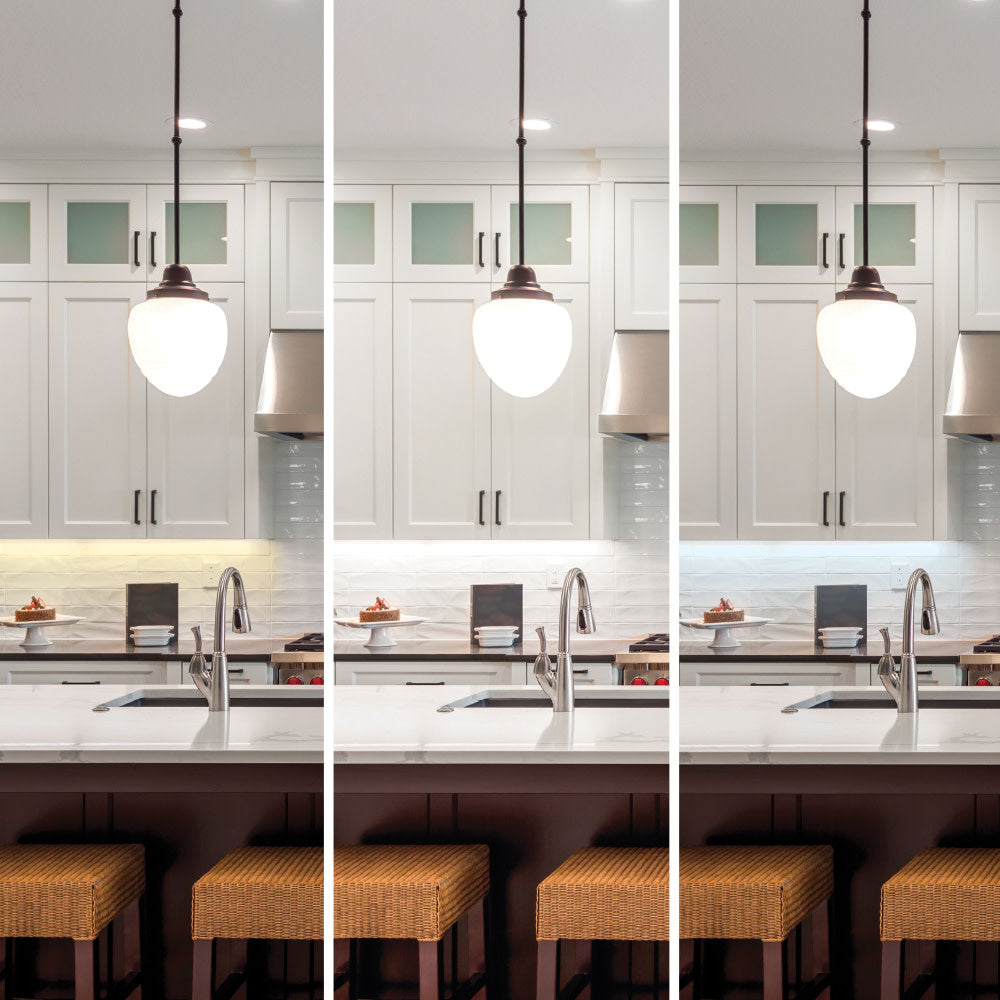

Easily switch between Warm White, Cool White, Cool Daylight
Product Feature 2:

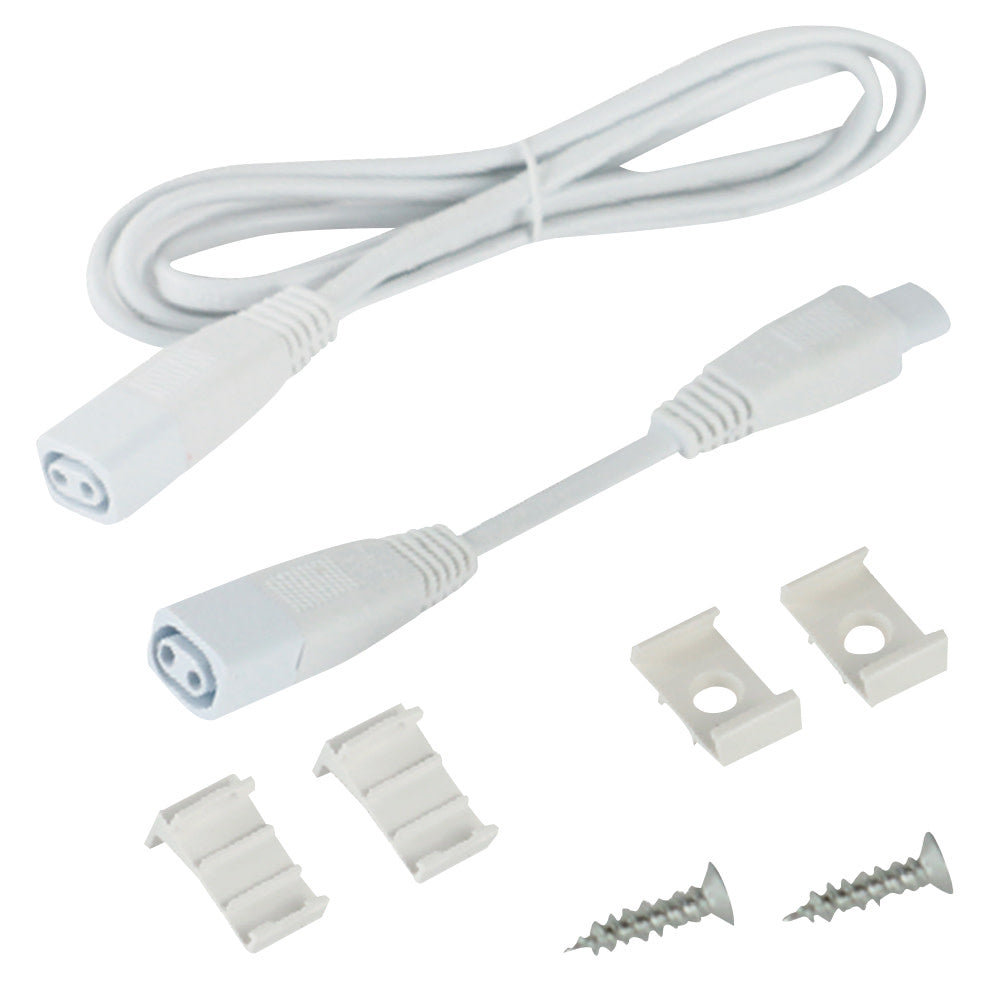

Linkable for easy installation
Product Feature 3:
900lm
  • Quick Order Code: 559479
  • Barcode: 5055788297178
  • Category: Luminaires
  • Range Name: Colour Switching
  • Type: Single
  • Product Type: Battens
  • Product Body Finish: Matt white
  • Market Segment: Commercial & Industrial
  • Finish: Matt White
  • Features: CCT Switchable
  • Warranty (Years): 3
  • Emergency Option: No
  • Size (in ft): 2ft
  • Linkable: Yes
  • Product Length (mm): 549
  • Product Depth (mm): 30
  • Product Width (mm): 22
  • Product Weight (g): 268
  • Optic: Polycarbonate diffuser
  • Material: Polycarbonate
  • Construction: PC extrusion
  • Bulb or Luminaire Shape: Linear
  • Luminaire Fixing: Ceiling mounted
  • Mounting Type: Side cable entry
  • Placement / Application: Indoor
  • Luminous Flux in Lumens (lm): 900
  • Luminous efficacy (lm/W): 100
  • Correlated Colour Temperature (CCT) (K): 3000/4000/6500
  • Colour Temperature: 3000/4000/6500 - Warm White/Cool White/Cool Daylight
  • Colour Temperature Name: Warm White / Cool White / Cool Daylight
  • Beam Angle: 135
  • Colour Rendering Index (CRI): 80
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 25000
  • Switching Cycles: 100000
  • Useful Lumens (lm): 900
  • Power Consumption (W): 9
  • Power Factor: 0.9
  • Voltage Range (v): 220-240
  • Input Voltage (V): 220-240
  • Dimming: Non-Dimmable
  • Driver Included: Yes
  • Electric Current: AC
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • New Energy Rating: E
  • EU Luminaire: L
  • Hg 0% (Mercury Free): Yes
  • IK Rating (Impact Protection): IK03
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -10
  • Maximum Operating Temperature (°C): 45
