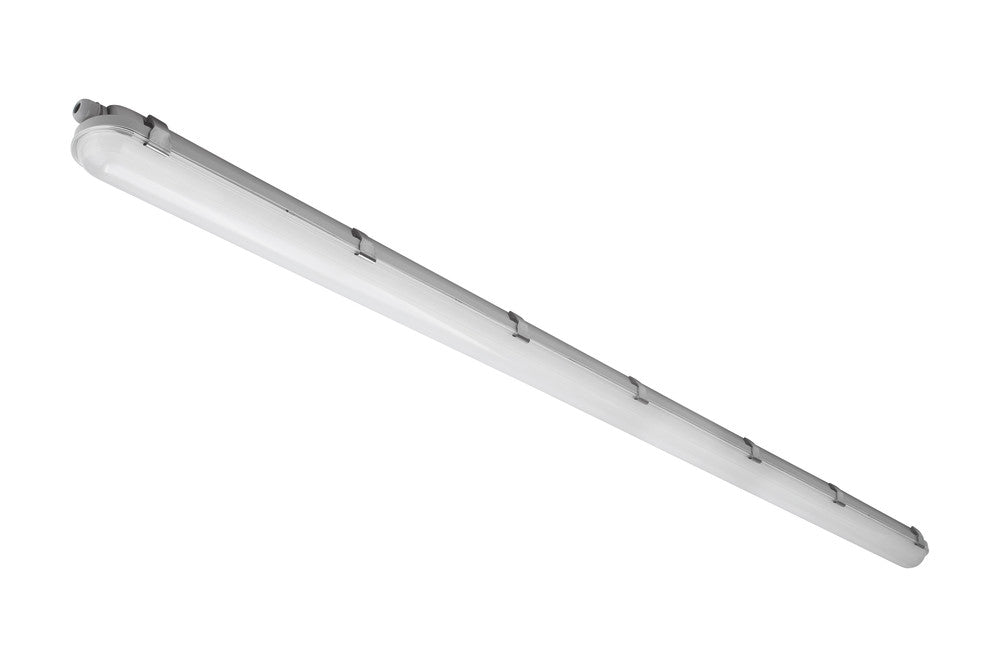

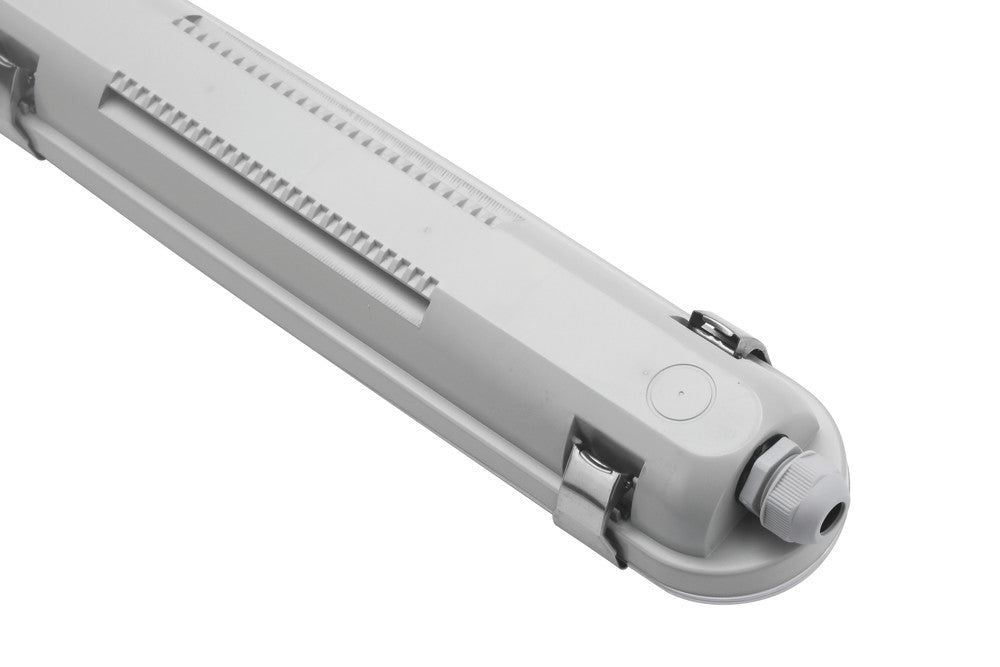

VAPOURLITE DALI DIMMABLE 6FT LED BATTEN IP65 IK08 44W/68W 4000K/5000K/6500K 8840LM 130LM/W 120 BEAM DALI SELF-EM - ILBTD261

VAPOURLITE DALI DIMMABLE 6FT LED BATTEN IP65 IK08 44W/68W 4000K/5000K/6500K 8840LM 130LM/W 120 BEAM DALI SELF-EM - ILBTD261

£117.00 exc. VAT
exc. VAT
exc. VAT
 £117.00

£140.40 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Integral LED Vapourlite 6ft DALI Battens provide exceptional durability and anti-corrosion, with IK08 impact resistance and IP65 dust and water ingress protection, ideal for commercial and industrial applications including storage areas, car parks, commercial kitchens, factories and warehouses.The inbuilt driver enables connection to your DALI network allowing you to achieve greater efficiencies and reduced maintenance costs alongside multiple lighting control. Selectable Power & CCT options make Vapourlite battens extremely versatile and offer huge energy savings compared to equivalent fluorescent lighting, achieving up to 130lm/W.The integrated emergency pack allows for a minimum 3 hours of illumination should power go out, conforming to UK regulation BS EN 60598.

Product Feature 1:
Power & CCT Switchable
Product Feature 2:
DALI Dimmable
Product Feature 3:
50000hrs
Product Feature 4:
130lm/W
Product Feature 5:
Class I
Product Feature 6:
5 Year Warranty
Product Feature 7:
IP65
Product Feature 8:
IK08
  • Barcode: 5055788278849
  • Category: Luminaires
  • Range Name: Vapourlite
  • Type: Single / Twin
  • Product Type: Battens
  • Product Body Finish: Grey
  • Market Segment: Indoor commercial, Industrial, residential
  • Finish: Grey
  • Features: Power & CCT Swtichable
  • Warranty (Years): 5
  • Emergency Option: Integrated
  • Size (in ft): 6ft
  • Linkable: Yes
  • Product Length (mm): 1805
  • Product Depth (mm): 71
  • Product Width (mm): 82
  • Product Weight (g): 1975
  • Optic: Polycarbonate diffuser
  • Material: PC injection moulding
  • Construction: PC injection moulding
  • Bulb or Luminaire Shape: Linear
  • Luminaire Fixing: Suspended / ceiling mounted / wall mounted
  • Mounting Type: Rear and side Cable Entry
  • Placement / Application: Indoor, Outdoor, General Lighting
  • Luminous Flux in Lumens (lm): 5720 to 8840
  • Luminous efficacy (lm/W): 130
  • Correlated Colour Temperature (CCT) (K): 4000/5000/6500
  • Colour Temperature: 4000/5000/6500 - Cool White/Daylight/Cool Daylight
  • Colour Temperature Name: Cool White/Daylight/Cool Daylight
  • Beam Angle: 120
  • Colour Rendering Index (CRI): 80
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Size (mm): 2835
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 50000
  • Lumens in Emergency mode (lm): 225
  • Switching Cycles: 25000
  • Power Factor: 0.9
  • Voltage Range (v): 200-240
  • Input Voltage (V): 200-240
  • Dimming: Dimmable
  • Driver Included: Yes
  • Electric Current: AC
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • EU Luminaire: L
  • Hg 0% (Mercury Free): Yes
  • IK Rating (Impact Protection): IK08
  • IP Rating (Ingress Protection): IP65
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 40
